Sirio – GPA 108-136

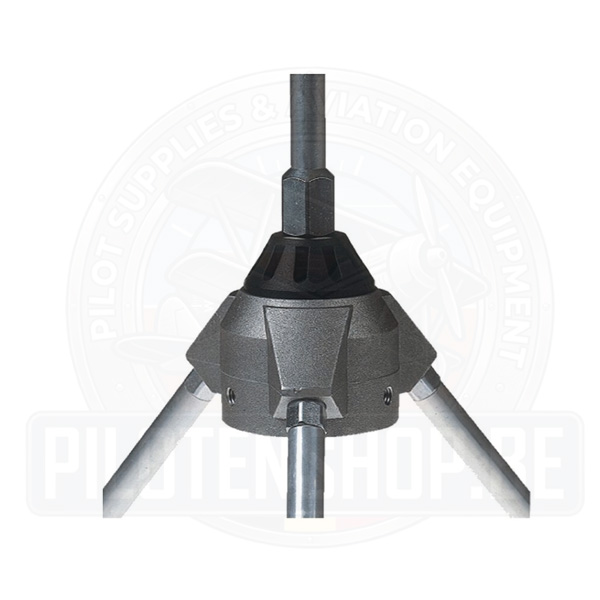

1/4 λ Ground Plane antenna for base station service working on 108-136 MHz by means of the tuning diagram enclosed. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances. Designed for aeronautic band service.

Frequency range:108 – 136 MHz tunable

Electrical data

  • Electrical type: 1/4 λ ground plane
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 12.2 MHz ≤ 2.0
  • Power peak: 500 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Radial length: 650 mm

Mechanical data

  • Materials: Aluminium, chromed brass, zamak
  • Mast Ø: 35 – 40 mm
  • Max wind resistance: 150 km/h
  • Height: 1185 mm
  • Weight: 565 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
