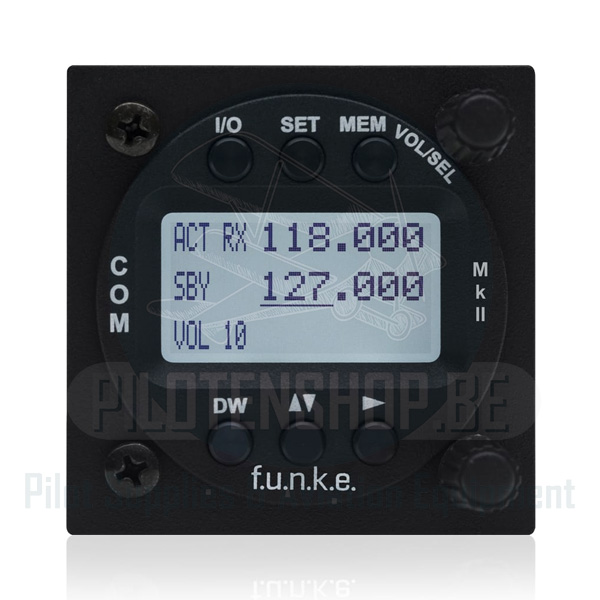

FUNKE – ATR833-II LCD COM Radio – VHF Transceiver
- Complete VHF transceiver with 6 W output power in a 2 ¼ inch (57 mm) housing
- Digital signal processing directly after the 1st intermediate frequency
- Digital audio processing
- Very stable transmit power
- LCD display for best sunlight readability and low power consumption
- Satisfies equipage requirement for 8.33 kHz channel spacing
- Dual-watch technology, monitoring of two frequencies
- Voice controlled intercom with automatic detection of microphone type, can be deactivated for use with external intercom
- Memory for 20 user-definable named frequencies
- Easy recall of the 10 last used frequencies
Transmitter and receiver are a complete new development with state-of-the-art digital signal processing.
The built-in voice controlled intercom operates up to 4 microphones (2 standard, 2 dynamic). In many cases no extra intercom is required. This saves cost and weight. All microphones are adjustable separately. Using suitable headsets a 4-place intercom can be built-up.
The ATR833-II has 2 memory functions: Up to 100 frequencies can be stored together with an identifier. Moreover, the 10 last used frequencies can be recalled easily.
The LCD display has best sunlight readability and a low power consumption. These characteristics are in particular interesting for glider pilots.
The ATR833-II can be remotely controlled using the ATR833RT remote control unit.
Technical Data
|
Abmessungen
|
65 x 65 x 169 mm
|
|
|
Gewicht
|
460 g
|
|
|
Versorgungsspannung
|
11 – 30 V DC
|
|
|
Stromaufnahme Empfang
|
ca. 220/120 mA
|
|
|
Stromaufnahme Sendebetrieb
|
ca. 1.3/0,65 A
|
|
|
HF-Sendeleistung
|
6 W
|
|
|
NF-Ausgangsleistung
|
4 W
|
|
|
Normen
|
ETSO-2C169A
Transmitter Class 4 & 6 Receiver Class C, E, H1, H2 ETSO2C128 |
|
|
Zulassung
|
EASA.21O.10062108
|
